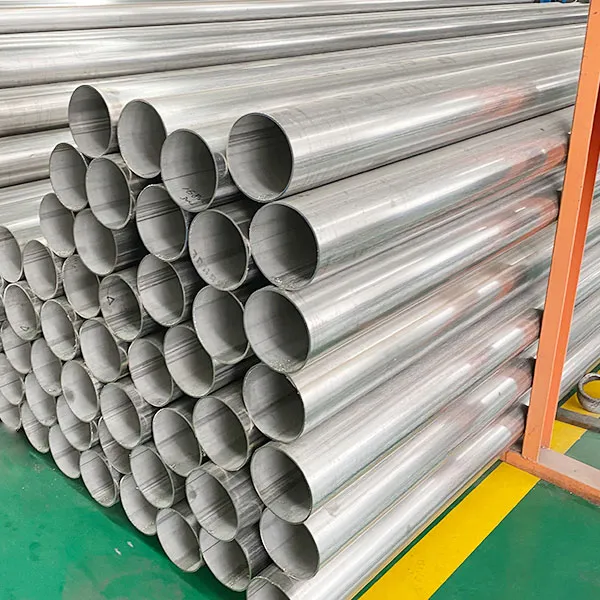

Alloy 800h Tube

1. Khoom siv: UNS N08810, din 1.4876, Incoloy 800H
2. Txoj kab uas hla: 4.0 - 203.2 hli
3. Phab ntsa thickness: 0.5 mus rau 20mm
4. Ntev: 6 meters, 12 meters lossis customized

Xa kev nug

Khoom Taw qhia

Alloy 800h Tube, yog kub kub resistant nickel-hlau-chromium alloy. Inconel 800h Tube muaj pes tsawg leeg suav nrog chromium, npib tsib xee thiab hlau, nrog me me ntawm lwm cov ntsiab lus xws li txhuas thiab titanium. Piv rau Alloy 800, Incoloy 800h yog tsim tshwj xeeb los muab cov khoom zoo dua thiab kev ntxhov siab tawg ntawm qhov kub thiab txias. Peb yog Incoloy 800h tus neeg muag khoom nrog 15+ kev paub txog kev xa tawm, tiv tauj peb kom paub ntau ntxiv thiab nqe lus pub dawb!

Incoloy Alloy 800h Tubing Txuj:

ASTM B163: Txuj Specification rau Seamless Nickel thiab Nickel Alloy Condenser thiab Kub-Exchanger Tubes

ASTM B407: Standard Specification rau Nickel-Iron-Chromium Alloy Seamless Yeeb thiab Tube

ASTM B515 Txuj Specification rau Welded Nickel-Iron-Chromium Alloy Tubes

ASTM B514: Txuj Specification rau Welded Nickel-Iron-Chromium Alloy Yeeb Nkab

Tus Neeg Sawv Cev Rupture-Strength Values rau Alloy 800H

Kub		10,000 h		30,000 h		50,000 h		100,000 h
degree F	degree	ksi ua	MPa	ksi ua	MPa	ksi ua	MPa	ksi ua	MPa
1200	650	17.5	121	15	103	14	97	13	90
1300	705	11	76	9.5	66	8.8	61	8	55
1400	760	7.3	50	6.3	43	5.8	40	5.3	37
1500	815	5.2	36	4.4	30	4.1	28	3.7	26
1600	870	3.5	24	3	21	2.8	19	2.5	17
1700	925	1.9	13	1.6	11	1.4	10	1.2	8.3
1800	980	1.2	8.3	1	6.9	0.9	6.2	0.8	5.5

Hu rau tam sim no

ASME SB 407 N08810 Daim ntawv thov

Incoloy 800h Seamless Tube Tshuaj Ua Haujlwm
Lub zog tiam
Roj thiab roj ntau lawm
Rauv Cheebtsam
Thaum tshav kub kub Exchangers

Alloy 800h Tube Qhov kub siab tshaj plaws

Alloy 800H muaj qhov kub ua haujlwm kub ntawm 950 - 1200 degree, thiab lub raj tuaj yeem tuav nws lub zog thiab kev ua haujlwm ruaj khov txawm tias qhov kub siab tshaj 1000 degree.

Incoloy Alloy 800h Kev Pabcuam Customized

Incoloy 800h yeeb nkab tuaj yeem tsim nyob rau hauv ntau qhov ntau thiab tsawg, ob qho tib si welded thiab seamless, yog tias koj tab tom nrhiav kev txhim khu kev qha thiab ruaj khov thaum tshav kub kub-resistant alloy, ces 800h alloy yeeb nkab yog koj xaiv zoo tshaj.

ASTM B407 Incoloy 800 Pipe Dimensions

OD	cev WT	hauv.	Sch	Kg / m
mm	mm	hauv.	Sch	Kg / m
13.72	1.65	1/4	10S	0.5
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.2	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.3
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.4	2.77	1	10S	2.13
33.4	3.38	1	40S	2.54
33.4	4.55	1	80S	3.29
33.4	6.352)	1	160	4.3
42.16	2.77	1 1/4	10S	2.73
42.16	3.56	1 1/4	40S	3.44
42.16	4.85	1 1/4	80S	4.53
42.16	6.352)	1 1/4	160	5.69
48.26	2.77	1 1/2	10S	3.16
48.26	3.68	1 1/2	40S	4.11
48.26	5.08	1 1/2	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.6
60.33	8.742)	2	160	11.29
73.03	3.05	2 1/2	10S	5.35
73.03	5.16	2 1/2	40S	8.77
73.03	7.01	2 1/2	80S	11.59
88.9	3.05	3	10S	6.56
88.9	5.49	3	40S	11.47
88.9	7.62	3	80S	15.51
88.9	11.132)	3	160	21.67
101.6	3.05	3 1/3	10S	7.53
101.6	5.74	3 1/3	40S	13.78
101.6	8.08	3 1/3	80S	18.92
