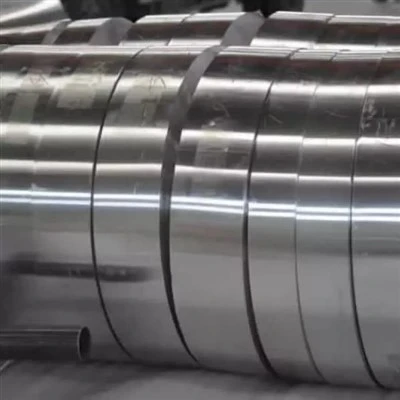

UNS N08825 Strip
1. Khoom Qib: Incoloy 825, UNS N08825, W.NR. 2.4858
2. Dav: 3.2 ~ 1500mm lossis raws li koj xav tau
3. Thickness: 0.2 ~ 50mm los yog raws li koj xav tau
4. Ntev: 0 ~ 12m lossis raws li koj xav tau
UNS N08825 daim kab xev(feem ntau paub nyob rau hauv nws lub npe lag luam raws lilus 825). Qhov no titanium-stabilized, tag nrho austenitic structural alloy txuas qhov kev ua tau zoo ntawm nruab nrab duplex stainless hlau thiab hyper- kim, siab - molybdenum khoom- daws cov nickel chemistry. HT PIPE is an08825 uatus xa khoom nrog 15+ kev xa tawm.Tiv tauj pebkom paub ntau ntxiv thiab quotes dawb!
Cov Khoom Muag Khoom
Bar & Rod
Phaj & Ntawv
Coil & Sawb
Tube & Tube
Haum: Flange, Tee, Luj Tshib, Reducer thiab lwm yam.
Forging: Nplhaib, Ncej, Vajvoog, Thaiv thiab lwm yam.
Elemental Synergy thiab Metallurgy ntawm N08825
| Lub ntsiab | Specification Range (%) |
| Nickel (Ni) | 38.0 – 46.0 |
| Hlau (Fe) | Tshuav (22.0 min) |
| Chromium (Cr) | 19.5 – 23.5 |
| Molybdenum (hli) | 2.5 – 3.5 |
| Copper (Cu) | 1.5 – 3.0 |
| Titanium (Ti) | 0.6 – 1.2 |
Cov Mechanics ntawm Intergranular Protection
Thaum qis-stabilized alloys nyob rau hauv lub thermal voj voog ntawm vuam los yog siab -kub ua, chromium carbides feem ntau precipitate raws li grain ciam teb. Qhov no tawm tsam thaj chaw uas nyob ib sab depleted ntawm chromium-ib qho yooj yim hu ua rhiab heev uas caw intergranular corrosion sai.
UNS N08825 hla qhov no los ntawm kev qhia qhov tseeb titanium-rau-carbon piv. Vim hais tias titanium muaj cov thermodynamic affinity ntau dua rau cov pa roj carbon ntau dua li cov chromium ua, nws xaiv cov ntaub ntawv ruaj khov titanium carbides dispersed thoob plaws hauv cov nplej matrices. Qhov no khaws cia cov chromium faib nyob ze ntawm thaj tsam ntawm cov qoob loo, tso cai rau kev txhim khu kev lag luam vuam yam tsis tas yuav tsum tau tshaj tawm -weld solution annealing.
Ntiaj teb no Specifications thiab Standard Conformity
Kev yuav khoom nyias -gauge foil lossis hnyav- ntsuas sawb rau kev tsim cov cuab yeej cuab tam tseem ceeb xav kom ua raws li cov qauv kev pom zoo thoob ntiaj teb. Txias-rolled UNS N08825 strip feem ntau tau teev tseg thiab siv tau raws li ntau lub hauv paus loj:
ASTM B424 / ASME SB 424 Cov Lus QhiaCov qauv kev qhia tshwj xeeb hais txog cov tshuaj lom neeg, lub cev, thiab cov khoom siv rau nickel-hlau-chromium-molybdenum- tooj liab alloy phaj, ntawv, thiab txias- dov strip.
ASTM B906 / ASME SB906 Cov Lus Qhia:Qhia txog cov txheej txheem kev lag luam dav dav thiab ntsuas qhov pib rau dov nickel alloy nplooj ntawv thiab cov txheej txheem strips.
NACE MR0175 / ISO 15156 Daim Ntawv Pov Thawj:Tswj cov kev cai xaiv cov khoom siv rau qhov chaw qaub heev hauv kev tsim roj thiab roj. Nws faib N08825 raws li Hom 4c alloy, tsim nyog nws siv hauv cov khoom siv ua tiav hauv qhov chaw uas muaj hydrogen sulfide thiab cov tshuaj chloride siab ua rau muaj kev pheej hmoo tawg loj.
Fabrication Guidelines: Vuam, tsim, thiab Pickling
Thaum UNS N08825 sawb muaj cov khoom siv hauv siab, nws txoj haujlwm ruaj khov- tus nqi hardening yuav tsum tau hloov kho rau cov khoom siv hlau tsoos.
Txias txoj kev coj cwj pwm
Vim tias N08825 ua haujlwm- hardens sai dua li tus qauv 316L stainless hlau, tsim cov cuab yeej, stampers, thiab dov slitting kab yuav tsum muaj zog thiab ua kom nruj. Progressive stamping tuag yuav tsum tau huv, siab - lubricants siab los tiv thaiv cov cuab yeej galling los yog nto tearing ntawm lub sawb. Yog hais tias sib sib zog nqus nqus los yog intricate forming raug tua, intermediate ci annealing ntawm kwv yees li 1000℃tom qab txias ceev yog xav tau los kho matrix ductility.
Descaling thiab Surface Finishing
Kev kho cua sov los yog vuam tawm tom qab ib qho kev sib koom ua ke, complex oxide nplai ntawm N08825 uas yog tawv tawv dua li cov nplai stainless hlau.
Txhawm rau rov ua kom muaj kev tiv thaiv corrosion tag nrho, cov tshuaj tua kab mob yuav tsum tau ua tiav siv ob theem - txheej txheem.
Ua ntej, siv cov alkaline permanganate da dej los yog cov neeg kho tshuab blasting kom mob thiab rhuav tshem cov tenacious oxide zaj duab xis. Ua raws li qhov no nrog rau da dej uas muaj nitric -hydrofluoric acid sib tov. Cov neeg ua haujlwm yuav tsum tau saib xyuas lub sijhawm immersion ze; dhau - raug tuaj yeem ua rau thaj chaw sib cuam tshuam, txawm tias nyob hauv cov alloys ruaj khov.
FAQ
Q: Txog Alloy 825 strip nqi ib kg?
A: Cov nqi ntawm $ 25 txog $ 40 ib kg, txawv nyob ntawm qhov loj me, phab ntsa thickness, tus neeg muag khoom thiab lwm yam.
Q: Koj lub sijhawm khoom xa tuaj ntev npaum li cas?
A: Lub sij hawm xa tuaj yog nyob rau hauv 5-21 hnub
Q: Puas muaj Kev Pabcuam Qauv?
A: Cov qauv raug muab pub dawb
Q: Yam tsawg kawg nkaus Order Quantity yog dab tsi?
A: Tsis muaj qhov txiav txim yam tsawg kawg nkaus
Q: Yuav ntim cov khoom li cas?
A: Cov txheej sab hauv muaj cov ntawv tsis muaj dej tsis zoo sab nrauv thiab kho nrog fumigation ntoo pallet.
Q: Lub teb chaws xa tawm
A: Brazil, South Africa, Indonesia, Is Nrias teb, Singapore, Malaysia, Iran, Russia, UAE, Chile, Laos, thiab lwm yam
