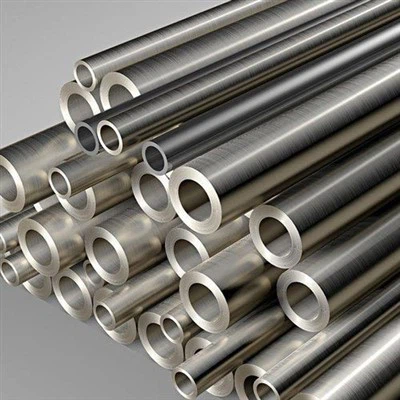

Alloy 718 Tube

1. Txuj: ASTM B163, ASME SB163
2. Loj: 1/2 '' ~ 12 '' OD
3. Thickness: 0.40 hli - 12.70 hli
4. Sib npaug: UNS N07718, Din 2.4668, Inconel 718

Xa kev nug

Khoom Taw qhia

718 cevyog nickel-chromium alloy nrog cov tshuaj muaj pes tsawg leeg ntawm 50.5% npib tsib xee, 18.6% chromium, 3% molybdenum, 5.1% niobium, 0.9% titanium, 0.5% txhuas thiab lwm yam kab cov ntsiab lus. Alloy 718 paub txog nws cov cuab yeej zoo heev ntawm ob qho tib si siab thiab qis kub thiab zoo heev tiv thaiv corrosion thiab oxidation. Nickel alloy 718 tuaj yeem tiv taus kub txog 1300 degree (2372 degree F). Feem ntau, Inconel 718 tuaj yeem tiv taus qhov kub txog li 700 degree (kwv yees 1300 degree F) txog 800 degree (kwv yees 1470 degree F) hauv kev siv tas li.

Ntsiab nta thiab cov khoom ntawm 718 Tubes:

Siab kub lub zog
Corrosion kuj
Yuav tau welded siv ntau yam welding txoj kev
Zoo qaug zog thiab creep kuj
Khaws nws cov khoom siv kho tshuab ntawm qhov kub thiab txias
Formability thiab machinability
Tsis-magnetic

Inconel 718 Tube Yield zog

Kub	Tshuaj kho
Tensile Rm	155	ksi (yam tsawg kawg nkaus)
Tensile Rm	1069	MPa (tsawg kawg)
Rp 0.2% Tawm	95	ksi (yam tsawg kawg nkaus)
Rp 0.2% Tawm	655	MPa (tsawg kawg)
Elongation (2 "los yog 4D gl)	30	% (tsawg kawg)

Lub cev muaj zog ntawm Din 2.4668 Tube

Qhov ntom	g/cm3	8.019
Thermal conductivity	Wm -1. degree K-1	11.04
Hluav taws xob Resistivity	μohm/cm	1.032
Thaum tshav kub kub tshwj xeeb (0-100 degree)	J.kg -1. degree K-1	435
Modulus Elasticity	GPa	200
Thermal Expansion	μm / μm / degree	13

UNSN07718 Tube Daim Ntawv Thov:

Kev lag luam roj thiab roj: Roj thiab roj qhov dej, Sour Gas Wells
Kev lag luam tsim hluav taws xob: Chav Generators, Nuclear Fuel Assemblies thiab Gas Turbine Assemblies.
Aerospace Kev Lag Luam: Cov Cuab Yeej Siv Hluav Taws Xob, Cov Iav tsaws tsaws thiab cov qauv tsim.

Alloy 718 Tube Kub Ua Haujlwm Txheej Txheem

Peb cov chaw tsim khoom tsim cov hlau alloycev 07718, hloov mus rau qhov tsim nyog kub ua haujlwm kub ntawm 1120-900 degree, txoj kev txias yog dej quenching, thiab annealing yuav tsum tau ua nyob rau hauv lub sij hawm tom qab kub ua hauj lwm los xyuas kom meej kev ua tau zoo. Thaum lub sij hawm kub ua, cov khoom yog rhuab mus rau lub sab sauv txwv ntawm ua kub kom paub meej plasticity thaum lub sij hawm ua. Qhov kawg ua qhov kub thiab txias thaum lub deformation mus txog 20% tsis tsawg tshaj li 960 degree.

Inconel718 Tube Suppliers

Pebib 718Cov khoom lag luam, ni 718 yeeb nkab yog tsim raws li ASTM B163 cov khoom siv. Cov ntaub ntawv khoom muaj xws li: cov kav dej, raj, daim hlau, cov ntawv, cov pas nrig, flanges, fittings thiab yeeb nkab coils. Peb kuj muab Hastalloy C22, Hastalloy C276, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Monel K500, Inconel 600, Inconel 601, thiab lwm yam. Hu rau peb kom paub ntau ntxiv thiab ib tug dawb quote!
