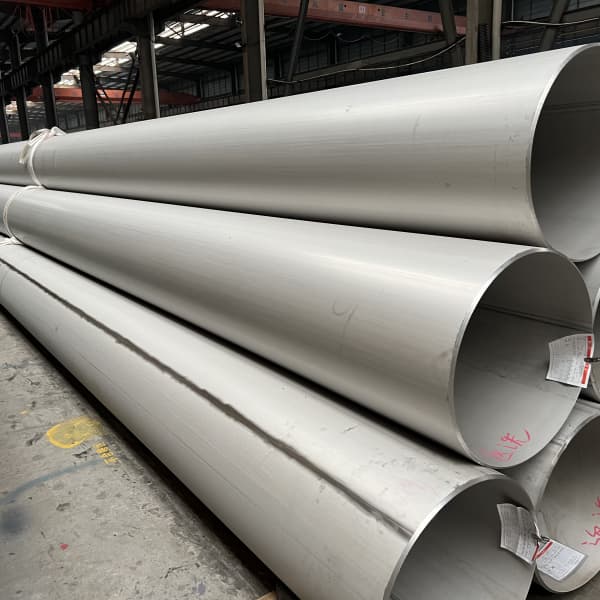

ASTM B161 Nickel 201 Yeeb Nkab

ASTM B161 Nickel 201 Yeeb Nkabyog qhov qis- carbon version ntawm kev lag luam ntshiab nickel. Qhov kev hloov pauv ntawd - carbon poob los ntawm 0.15% max hauv Nickel 200 rau 0.02% max hauv Nickel 201 - yog vim li cas qib muaj. Tshaj 315 degree, carbon nyob rau hauv Nickel 200 precipitates ntawm grain ciam teb raws li graphite thiab embrits cov hlau. Nickel 201 nres qhov ntawd.



Yog tias koj cov kab tuav cov dej qab zib kub, cov ntsev ntsev, lossis siab -kub txo cov kua qaub, Nickel 201 feem ntau yog qhov pib. Nplooj ntawv no suav nrog yam koj xav tau los qhia thiab txheeb xyuas: chemistry, cov khoom siv kho tshuab thiab lub cev, thaj tsam corrosion, qhov ntau thiab tsawg, thiab cov tshev uas ua pov thawj tias koj tau txais N02201 tiag.

Lub Ciam Tebchaws Carbon: Vim li cas Nickel 201 Muaj

Nickel 200 thiab Nickel 201 yuav luag zoo tib yam hauv kev tiv thaiv corrosion, hluav taws xob conductivity, thiab kev coj tus cwj pwm. Qhov sib txawv tsuas muaj txiaj ntsig yog carbon.

Qib	UNS	C max	Hom C	Siv Saum 315 degree?
Nickel 200	N02200	0.15 %	0.06 %	Tsis muaj - graphitization txaus ntshai
Nickel 201	N02201	0.02 %	0.01 %	Yog - ruaj khov microstructure

Qhov 0.02% carbon txwv yog qhov tso cai rau Nickel 201 ua haujlwm ntev -lub sijhawm ntawm qhov kub txog li 540℃hauv caustic thiab txo cov kev pabcuam. Rau kev pabcuam hauv qab 315 degree, Nickel 200 thiab Nickel 201 yog hloov pauv tau. Tshaj li qhov kub thiab txias, Nickel 201 yog tib txoj kev nyab xeeb ntawm cov khoom lag luam ntshiab nickels.



Tshuaj muaj pes tsawg leeg (ASTM B161)

Element	Specification (wt%)	Hom
Nickel (Ni) + Cobalt (Co)	Ntau dua lossis sib npaug rau 99.0	99.6
Cov pa roj carbon (C)	Tsawg dua lossis sib npaug li 0.02	0.005
Hlau (Fe)	Tsawg dua lossis sib npaug li 0.40	0.20
Manganese (Mn)	Tsawg dua los yog sib npaug li 0.35	0.20
Silicon (Si)	Tsawg dua los yog sib npaug li 0.35	0.15
Copper (Cu)	Tsawg dua lossis sib npaug li 0.25	0.10
Sulfur (S)	Tsawg dua lossis sib npaug li 0.010	0.005

Thaum koj kuaj MTR, tsom ntsoov rau carbon ua ntej. Daim ntawv pov thawj qhia tias 0.03% C tsis yog Nickel 201. Nws tsis muaj teeb meem dab tsi tus neeg muag khoom hu nws - saum 0.02% carbon, cov yeeb nkab tsis yog N02201.



Mechanical Properties (ASTM B161 Annealed Pipe)

Khoom	Yam tsawg kawg nkaus	Hom
Tensile zog	380 MPa (55 ksi)	450 MPa
Yield zog, 0.2% offset	80 MPa (12 ksi)	150 MPa
Elongation hauv 50 mm	35 %	45–55 %
Hardness (ntev annealed)	-	45–70 IB

Nickel 201 ua haujlwm- hardens sai. Txias- ua hauj lwm los yog kev ntxhov siab-relieved raj tuaj yeem muab tau ntawm lub zog siab dua, tab sis feem ntau cov kav dej siv cov txheej txheem annealed rau formability thiab weldability.



Physical Properties That Matter for Design

Khoom	Tus nqi
Qhov ntom	8.89 g / cm³
Melting ntau	1435-1445 ° C
Thermal conductivity @ 20 degree	70 W/m·K
Hluav taws xob resistivity	0.095 µΩ·m
Modulus ntawm elasticity	207 GPA
Thermal expansion (20-100 degree)	13.3 µm/m· degree
Curie kub	~ 360 degree
Magnetic cwj pwm	Ferromagnetic hauv qab Curie point; paramagnetic saum toj no

Curie point yog tsim nyog nco ntsoov. Nickel 201 yog sib nqus ntawm chav tsev kub. Hauv siab - ntsuas ntsuas kub lossis kev siv hluav taws xob, qhov poob ntawm ferromagnetism saum toj no ~ 360℃tuaj yeem muaj teeb meem rau cov khoom siv hluav taws xob thiab cov khoom siv tiv thaiv.



Corrosion Resistance: Qhov Chaw Nws Ua Haujlwm - thiab Nws Tsis Yog

Ib puag ncig	Nickel 201 Kev ua haujlwm
Caustic soda (NaOH), tag nrho cov concentrations, mus txog ~ 540 degree	Zoo heev - classic Nickel 201 kev pabcuam
Caustic potash (KOH), nruab nrab thiab alkaline ntsev	Zoo heev
Txo cov kua qaub (dilute HCl, H₂SO₄) tsis muaj oxidizers	Zoo rau zoo heev
Chloride-dawb txo qhov chaw	Zoo heev
Hydrogen fluoride (anhydrous HF)	Zoo, tab sis Monel 400 feem ntau nyiam
Oxidizing acids (nitric, chromic)	pluag - siv stainless lossis Inconel hloov
Cov tshuaj chlorine ntub / oxidizing chloride daws	Tsis haum
Seawater / nruab nrab chloride kev pabcuam	Zoo, tab sis 316L lossis Monel 400 feem ntau raug nqi ntau dua - zoo



Qhov ntau thiab tsawg, Cov Qauv thiab Cov Qauv

Daim ntawv	Txuj	Hom kab mob
Seamless yeeb nkab	ASTM B161 / ASME SB161	NPS 1/8 "- 8" (10.3 - 219.1 mm OD), Sch 5S - 160S
Seamless condenser / tshav kub exchanger raj	ASTM B163 / ASME SB163	OD 6.35 - 127 mm, phab ntsa 1.27 - 12.7 mm
Welded yeeb nkab	ASTM B725 / ASME SB725	Loj diameters raws li kev thov
Txiav qhov ntev	-	Random 3-7 m los yog tsau rau kos duab, tiaj los yog bevelled

Cov lus nug peb feem ntau yog rau ASTM B161 seamless yeeb nkab hauv NPS 1/2 "mus rau 4", Sch 40S thiab 80S, annealed mob. Rau cov khoom siv hluav taws xob sib txawv, ASTM B163 raj yog qhov hu ua - tawm.



Tej kev siv

Kev lag luam	Qhov twg siv nickel 201 yeeb nkab
Caustic soda / chlor{0}}alkali	Evaporator tubes, concentrator piping, caustic hloov kab
Kev ua tshuaj lom neeg	Kub alkaline reactors, ntsev ntau lawm khoom
Khoom noj khoom haus / tshuaj	High -purity piping qhov twg cov khoom huv si tseem ceeb
Electronics / roj teeb	High -purity nickel Cheebtsam, cathode/anode hardware
Kev tsim hluav taws xob	Thaum tshav kub kub exchanger tubing, siab -kub gas tuav
Synthetic fiber ntau	Spinning dav hlau thiab txheej txheem piping hauv alkaline xov xwm



Nickel 201 vs Nickel 200 vs 316L: Cov lus txiav txim ceev

Kev ntsuas	Nickel 201 (N02201) khoom	Nickel 200 (N02200)	316L (S31603)
carbon txwv	0.02% max	0.15% max	0.03% max
Max kev pab temp	~ 540 degree	~ 315 degree	~ 425℃(oxidation txwv)
Caustic soda tsis kam	Zoo heev	Zoo heev	Zoo, txwv los ntawm chlorides
Oxidizing acid kuj	pluag	pluag	Zoo
Sib nqus ntawm chav tsev temp	Yog lawm	Yog lawm	Tsis muaj
Tus nqi txheeb ze	Siab dua 200	qis dua 201	Feem ntau qis tshaj

Yog tias koj qhov kev pabcuam kub kub thiab kub siab tshaj 315 degree, Nickel 201 yog qhov kev xaiv meej. Rau oxidizing lossis chloride- kev pabcuam kabmob, txav mus rau 316L lossis siab dua alloy.







Cim npe nrov: Nickel 201 yeeb nkab, ASTM B161 Nickel 201 yeeb nkab, UNS N02201 yeeb nkab, Nickel 201 yeeb nkab tsum
